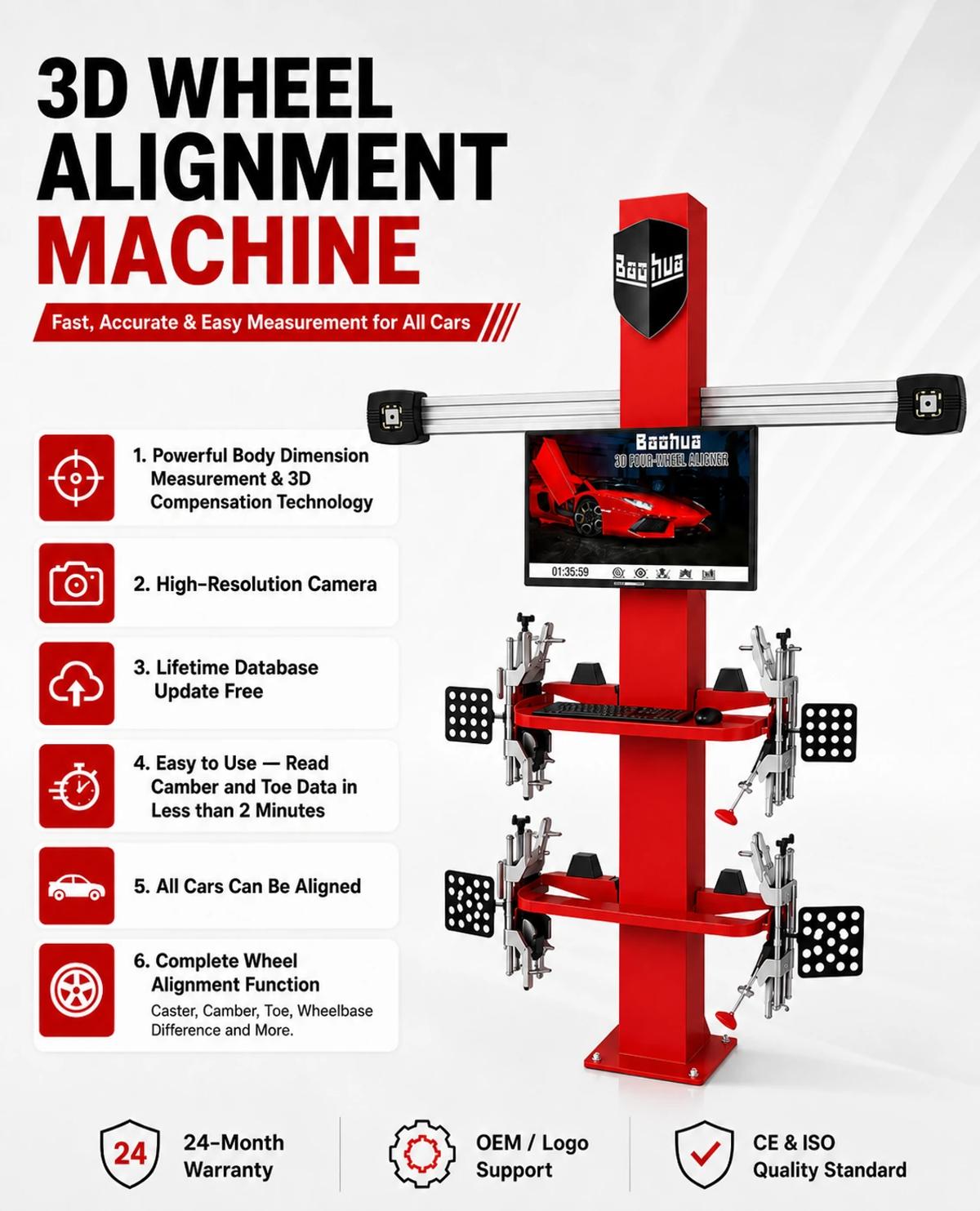

BAOHUA Automatic 3D Wheel Alignment Machine
A floor-standing 3D wheel alignment system for passenger-vehicle workshops and tire service centers, supplied with cameras, targets, wheel clamps, computer, monitor, and turntables.
- Minimum order
- 1 piece
- Automatic 3D wheel alignment system
- Dual 5-megapixel industrial cameras
- Four target plates and four multifunction wheel clamps
- Computer, 32-inch monitor, keyboard, and mouse
- Designed for tire shops and alignment service bays
Final configuration, specifications, accessories, packaging, and delivery terms are confirmed in the quotation.
Product overview
BAOHUA's automatic 3D wheel alignment machine is a floor-standing system for passenger-vehicle workshops, tire shops and alignment service bays. The configuration includes two 5 MP industrial cameras, four target plates and four multifunction wheel clamps with a stated 11-23 inch range. A computer, 32-inch monitor, keyboard, mouse and two mechanical turntables are supplied.
The system measures wheel-alignment parameters including toe, camber and caster, with a listed 220 V supply and 1 kW rated power. Confirm lift or pit compatibility, bay dimensions, calibration, software language and vehicle-database coverage before ordering.
TECHNICAL DATA
Specifications
Values below follow the supplied product listing. Confirm the final selected configuration before ordering.
Product specifications
| System type | Automatic 3D wheel alignment |
|---|---|
| Toe range / accuracy | ±2° / ±0.01° |
| Camber range / accuracy | ±10° / ±0.02° |
| Caster range / accuracy | ±10° / ±0.1° |
| Power supply | 220 V |
| Rated power | 1 kW |
| Camera | 2 × 5 MP industrial cameras |
| Wheel clamps | 4 multifunction clamps, 11–23 inch stated range |
| Target plates | 4 |
| Turntables | 2 mechanical turntables |
Installation requirements
Confirm lift or pit compatibility, level-floor requirements, bay dimensions, calibration procedure, language, and vehicle-database coverage before ordering.
PRODUCT DETAILS
Features, construction, and applications
Review the available product detail images for the selected equipment.
View 8 more detail images
PRODUCT VIDEO
See the equipment in detail
Play the product video directly on this page.
MODEL SELECTION
How to choose this equipment
Selection guidance
- Vehicle coverage and wheel-clamp fit
- Compare the stated 11–23 inch clamp range with the wheels you service. Send the vehicle makes, models and model years so software coverage and any required accessories can be confirmed for the quoted system.
- Adding a wheel aligner to an existing bay
- Send the lift or pit model, a dimensioned bay layout and photos showing the vehicle approach and planned camera position. Confirm the platform, turntables, camera clearance and calibration requirements as one configuration before ordering.
- Comparing complete equipment quotations
- Use the listed package as the comparison baseline: two 5 MP cameras, four targets, four wheel clamps, computer, 32-inch monitor, keyboard, mouse and two mechanical turntables. Ask the quotation to identify included software, update terms, calibration arrangements and any optional accessories separately.
- Distributor or workshop purchasing
- Provide the quantity, destination, local electrical supply and preferred software language. Request confirmation of packaging, installation responsibilities, training and spare-parts support for the selected configuration.
BUYER SEARCH GUIDE
Wheel alignment machine sourcing guide
The system is used for steering and suspension geometry measurement, alignment adjustment, tire-wear diagnosis, and chassis service.
Common sourcing language
Importers, distributors, and workshop buyers may describe BAOHUA Automatic 3D Wheel Alignment Machine using these related terms:
- 3D wheel alignment machine
- car wheel aligner
- computerized alignment system
- wheel alignment equipment
What to compare before ordering
Compare vehicle-database coverage, camera and target design, measurement functions, lift or pit compatibility, cabinet and computer package, update method, calibration, training, voltage, and after-sales support. Confirm the target vehicle range and workshop-bay dimensions.
View Tire Service Machines
Compare related models and choose the configuration that matches your vehicles, process, utilities, and workshop layout.
View categoryBUYER FAQ
Automatic 3D wheel alignment machine FAQ
Review the confirmed product data and the project information needed before requesting a final configuration.
What camera configuration is listed?
The supplied specification lists two 5-megapixel industrial cameras.
What wheel-clamp range is stated?
The source data states four multifunction clamps with an 11-23 inch range.
Which alignment accessories are listed?
The page lists four target plates, four wheel clamps, two mechanical turntables, a computer, a 32-inch monitor, keyboard, and mouse.
What power supply is stated?
The supplied specification lists 220 V power and 1 kW rated power. Final voltage and frequency should be confirmed.
Which workshops commonly review this system?
The listed applications include tire service centers, independent repair workshops, wheel alignment bays, and passenger-vehicle service centers.
What information is needed for a quotation?
Provide the vehicle and wheel range, lift or pit details, bay dimensions, power supply, preferred configuration, quantity, and destination.
