PAINTING AND CAR BODY REPAIR

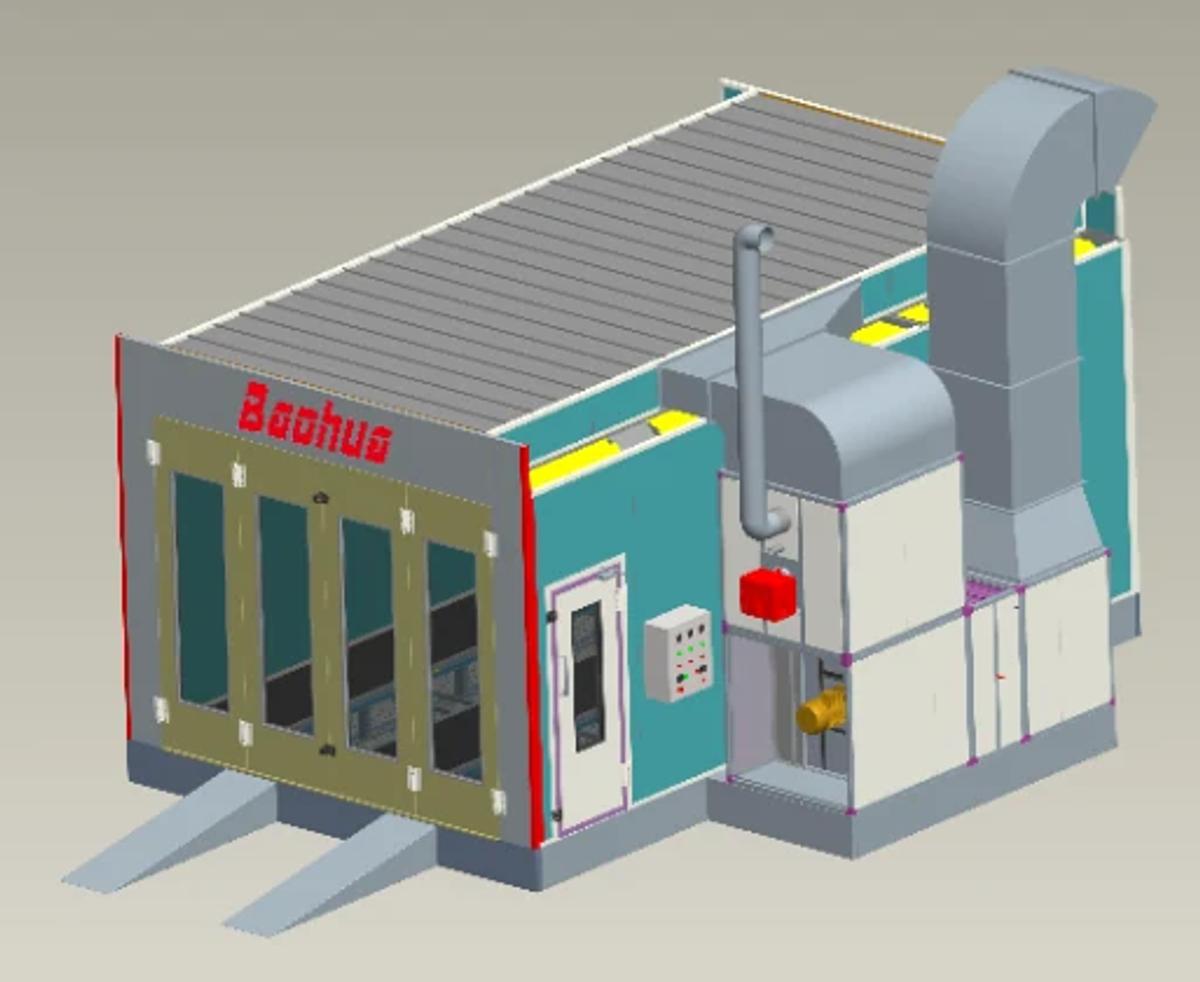

BAOHUA 700S European-Style Diesel-Heated Car Spray Booth
Model: 700S
A European-style diesel-heated car spray booth for body-shop refinishing, with a customizable 6,900 x 4,000 x 2,810 mm internal workspace, 30,000 m3/h stated airflow, and an Italian Riello burner.
- Minimum order
- 1 piece
- 6,900 x 4,000 x 2,810 mm customizable internal working area
- Diesel-heated spray and baking configuration
- 30,000 m3/h stated intake and exhaust airflow
- Italian Riello 40 diesel burner
- 220 / 380 / 415 V, 3-phase configurations
Final configuration, specifications, accessories, packaging, and delivery terms are confirmed in the quotation.
Product overview
The BAOHUA 700S European-style diesel-heated car spray booth is intended for passenger-vehicle refinishing and paint baking. Its customizable internal workspace is listed at 6,900 x 4,000 x 2,810 mm, with heating supplied by an Italian Riello 40 diesel burner. Intake and exhaust airflow are each listed at 30,000 m³/h, using one 7.5 kW intake fan and one 7.5 kW exhaust fan.
Ceiling illumination is provided by 32 LED lamps in eight groups. The booth can use an above-ground ramp arrangement or a prepared pit; confirm the final floor layout, exhaust route, fuel supply and selected three-phase electrical configuration before installation.
Planning a 700S body-shop installation
For a 700S diesel car spray booth quotation, send the largest vehicle dimensions and a workshop plan showing the proposed booth position, vehicle approach and exhaust route. Check the entry opening separately from the internal workspace: a vehicle fitting inside the booth does not by itself establish that access and working clearance are adequate. Identify whether the project will use ramps or a prepared pit before the floor arrangement is agreed.
Comparing booth quotations
Ask each quotation to identify the internal workspace, entry dimensions, intake and exhaust equipment, burner and electrical configuration. For this 700S configuration, use the listed Riello 40 diesel burner and separate intake and exhaust fans as comparison points. Confirm the final customized layout and installation scope together; external dimensions and the selected floor arrangement should be checked against the actual building.
TECHNICAL DATA
Specifications
Values below follow the supplied product listing. Confirm the final selected configuration before ordering.
Product specifications
| Model | 700S |
|---|---|
| Internal Dimensions | 6,900 x 4,000 x 2,810 mm (customizable) |
| External Dimensions | 7,000 x 5,600 x 3,610 mm |
| Heating System | Riello 40 diesel burner, Italy |
| Ceiling Lights | 8 groups, 32 LED lamps total |
| Maximum Service Power | 8.78-16.28 kW |
| Power Supply | 220 / 380 / 415 V, 3 phase |
| Equipment Weight | Approximately 5,000 kg |
| Entry Door Dimensions | 3,200 x 2,700 mm |
| Safety Door Dimensions | 700 x 2,000 mm |
| Air-Intake Fan | 7.5 kW x 1 |
| Exhaust Fan | 7.5 kW x 1 |
| Air-Intake Volume | 30,000 m3/h |
| Exhaust Volume | 30,000 m3/h |
| Full-Load Air Speed | 0.25-0.35 m/s |
| Noise Level | <=80 dB(A) |
| Filtration Efficiency | 98% for particles larger than 5 um |
| Wall Panel Thickness | 50 mm |
| Floor Grid Height | 350 mm |
| Basement Platform Capacity | 7,000 kg |
| Packing Volume | Approximately 27 m3 |
| Color | Customizable |
Installation requirements
The booth can be installed above ground with the supplied access ramps or installed with a prepared pit. The workshop must provide clearance beyond the final external booth dimensions. Confirm the customized internal dimensions, floor arrangement, exhaust route, diesel fuel supply, selected 220 / 380 / 415 V three-phase power, and local installation requirements before ordering.
Packaging information
- Floor platform package
- 4,200 x 1,000 x 2,200 mm
- Air-supply and exhaust cabinet package
- 3,100 x 1,200 x 2,060 mm
- Burner and air-damper package
- 2,700 x 1,200 x 2,200 mm
- Floor grids and checker plates package
- 1,150 x 755 x 1,450 mm
- 40HQ loading quantity
- 3 units
Commercial information
Warranty: 3 years
Lead time: 15-20 days
PRODUCT DETAILS
Features, construction, and applications
Review the available product detail images for the selected equipment.
View 5 more detail images
CONFIGURATION HIGHLIGHTS
European type diesel heating spray booth configuration
The 700S combines a full-size automotive refinishing cabin with diesel heating, high-volume air supply and exhaust, filtered downdraft airflow, and project-specific installation planning.
Stable spray-booth airflow
A rectangular top air plenum distributes filtered air across the working area. The supplied specification states 30,000 m3/h intake volume, 30,000 m3/h exhaust volume, and 0.25-0.35 m/s full-load air speed.
Riello diesel heating system
The confirmed configuration uses an Italian Riello 40 diesel burner. Heat is transferred through a 304 stainless steel heat exchanger identified in the supplied product material as a 1.5 mm plate structure with 22 heating tubes.
Bright working environment
Eight ceiling-light groups provide 32 LED lamps in total. The lighting layout is arranged along both sides of the ceiling to support paint preparation, spraying, inspection, and refinishing work.
Insulated booth construction
The cabin uses 50 mm rock wool wall panels and a 350 mm raised floor-grid structure. These construction details should be checked together with the available building height and floor arrangement.
Workshop and vehicle fit
The customizable internal working area is 6,900 x 4,000 x 2,810 mm, with a 3,200 x 2,700 mm entry door. Buyers should confirm vehicle dimensions, painter clearance, intake position, and exhaust route before quotation.
Installation and export preparation
Installation references, an exploded structural drawing, packing dimensions, and project photos are available on this page. Final burner, electrical, fuel, ventilation, and local compliance details are confirmed for each project.
DOWNLOADS
Installation and product documents
Review the document scope and notes before using it for installation planning.
700S Paint Booth Structural Installation Reference
Photo guide for the shared paint-booth platform, wall-panel, ceiling-frame and cabinet installation sequence. The photos show an electric-heating booth; the 700S diesel-heating system, burner, fuel system and related connections are different and require the project-specific installation documents.
Download file700S Paint Booth Installation Exploded Diagram
Exploded structural drawing with component references for the booth enclosure, doors, ceiling frame, wall panels, platform and generator cabinet. Curing-lamp and heating-related details shown in this drawing are configuration-specific and must not be used as the diesel-heating system installation instructions.
Download fileINSTALLED PROJECTS
Related automotive spray booth installations
These user-supplied photographs show real workshop layouts and installation stages. Locations, client identities and exact project configurations are omitted where they were not provided.
Automotive Spray Booth Installation Project Gallery
A selection of completed and in-progress automotive spray booth installations, including preparation bays, double-booth layouts, raised floor platforms, lighting, ductwork, and a curing operation.
- Open preparation-bay and enclosed-booth layout
- Double-booth workshop configurations
- Raised steel platform installation
- Ceiling and side lighting arrangements
- Vehicle refinishing and curing application
BUYER SEARCH GUIDE
European type diesel heated car spray booth sourcing guide
The BAOHUA 700S is configured for passenger-vehicle refinishing, paint spraying, baking and curing, collision-repair workshops, and complete auto body shop projects.
Common sourcing language
Importers, distributors, and workshop buyers may describe BAOHUA 700S European-Style Diesel-Heated Car Spray Booth using these related terms:
- European type car spray booth
- diesel heated car spray booth
- automotive paint booth
- spray bake oven
- car spray booth with Riello burner
- auto body shop paint booth
What to compare before ordering
Compare the internal and external dimensions, entry-door clearance, intake and exhaust volume, full-load air speed, filtration, diesel heating system, heat exchanger, lighting layout, wall-panel construction, floor-grid height, electrical supply, installation route, and exhaust discharge plan. Confirm the final project configuration against the supplied specification sheet.
View PAINTING AND CAR BODY REPAIR
Compare related models and choose the configuration that matches your vehicles, process, utilities, and workshop layout.
View categoryBUYER FAQ
700S automotive paint booth FAQ
Review the confirmed product data and the project information needed before requesting a final configuration.
What are the internal dimensions of the 700S paint booth?
The manufacturer PDF states customizable internal dimensions of 6,900 x 4,000 x 2,810 mm.
What heating method is listed?
The confirmed configuration uses an Italian Riello 40 diesel burner.
What airflow values are stated?
The manufacturer PDF states 30,000 m3/h for the air-intake fan and 30,000 m3/h for the exhaust fan, with 0.25-0.35 m/s full-load air speed.
What electrical supply is listed?
The confirmed voltage options are 220, 380, or 415 V, all with three-phase power. The stated maximum service power is 8.78-16.28 kW. Confirm the final destination voltage and frequency before production.
What information is needed before planning installation?
Provide vehicle size, available room dimensions, intake and exhaust locations, electrical supply, fuel arrangement, local climate, and destination.
Does the booth require a concrete pit?
No single installation method is required. The booth can be installed above ground with the supplied vehicle access ramps, or it can be installed with a prepared pit. The final floor arrangement and civil work should follow the confirmed project drawing.
How much workshop space is required?
The equipment external dimensions are 7,000 x 5,600 x 3,610 mm. Additional clearance is required for installation, doors, service access, air ducts, the exhaust route, and the diesel-heating equipment, so the complete workshop drawing should be reviewed before quotation.
Is installation guidance provided?
Yes. Installation drawings and schematic diagrams are provided. The final drawing should match the selected dimensions and above-ground or pit-mounted installation method.
Can the voltage and booth color be customized?
Yes. The booth color can be customized. Confirmed voltage options are 220, 380, or 415 V, and all are three-phase configurations.
Which parts require routine replacement?
The filter media requires periodic replacement. The replacement interval depends on paint use, operating hours, airflow condition, and the maintenance schedule.
What information is required for a quotation?
Provide the required internal booth dimensions and order quantity. These two items are needed to prepare the proposed configuration and quotation.
What is the stated production lead time?
The confirmed production lead time is 15-20 days. Final scheduling should be reconfirmed with the order.
What warranty is provided?
The confirmed warranty period is 3 years. The applicable scope and service terms should be confirmed in the final contract.
How many 700S spray booths fit in a 40HQ container?
The confirmed loading quantity is 3 units per 40HQ container.
