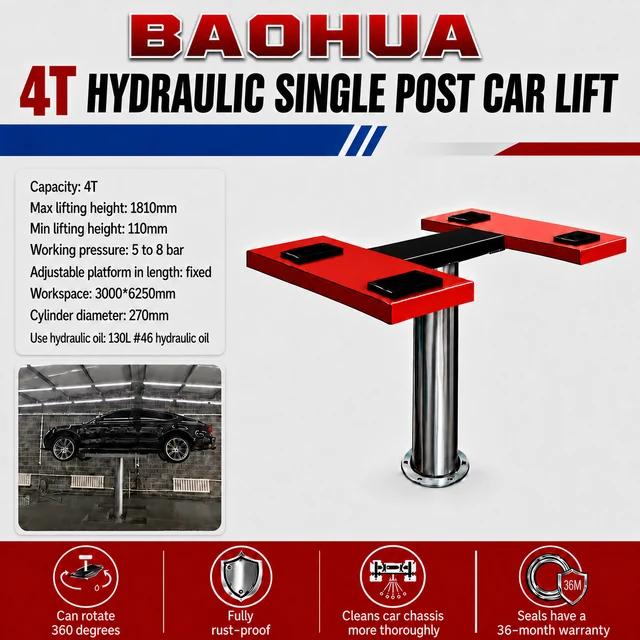

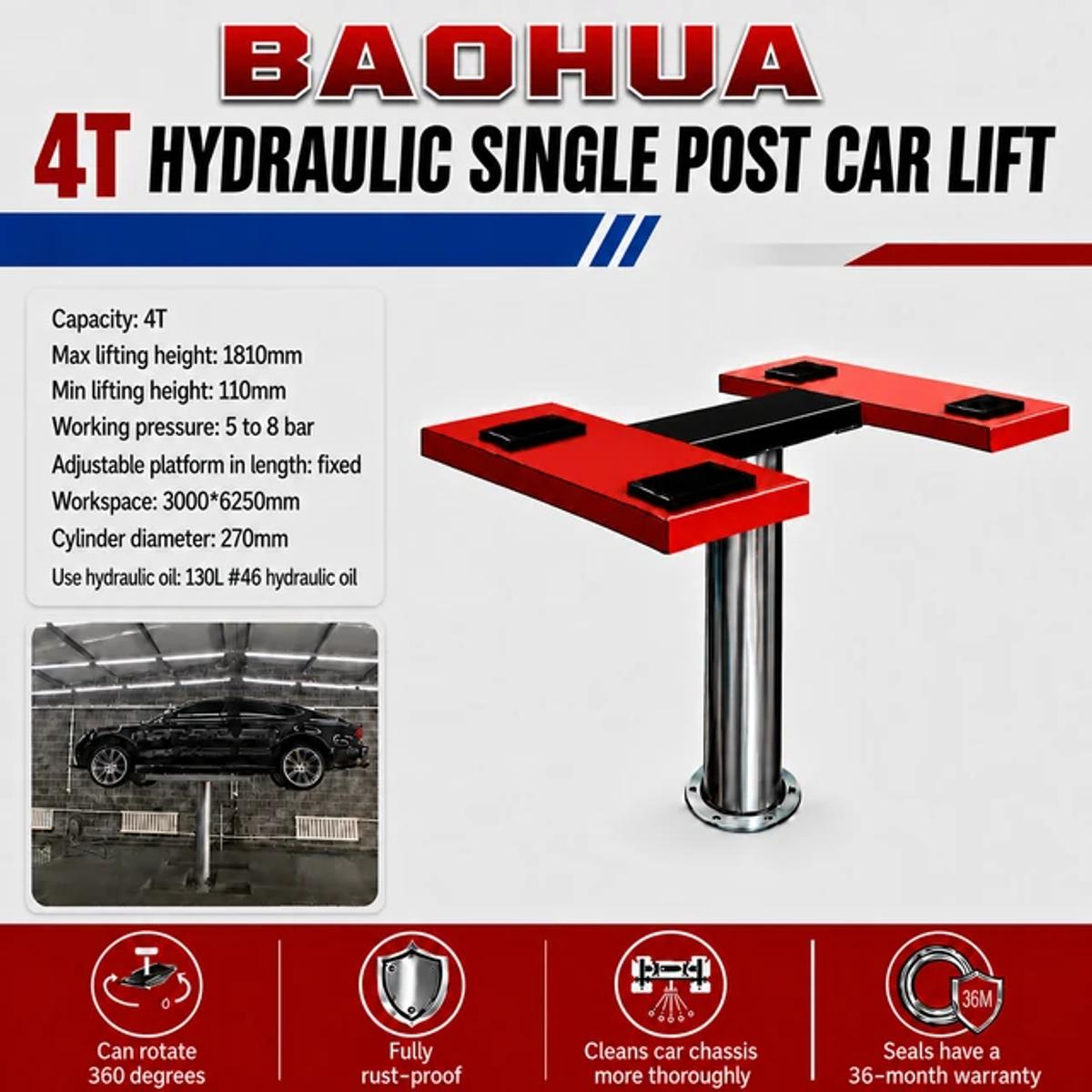

BAOHUA 4T In-Ground Single-Post Car Wash Lift
A 4,000 kg in-ground single-post lift for car washing, detailing, and underbody access. Its single-cylinder layout keeps the work area open when raised.
- Minimum order
- 1 piece
- 4,000 kg rated lifting capacity
- In-ground single-post and one-cylinder design
- Air-hydraulic operating system
- Steel post described as water- and corrosion-resistant
- Open access for washing and underbody service
Final configuration, specifications, accessories, packaging, and delivery terms are confirmed in the quotation.
Product overview
The BAOHUA 4T in-ground single-post car wash lift provides a 4,000 kg rated capacity for car wash bays, detailing centers and underbody cleaning. Its single-cylinder, air-hydraulic lifting arrangement uses a steel post and provides open access around the raised vehicle for washing and service work. The listed maximum lifting height is 1,800 mm, with a minimum height of 110 mm.
This is the dedicated 4T model, with its own installation and support requirements. Confirm the pit or foundation design, drainage, air supply and vehicle support arrangement for the planned wash bay before ordering.
Planning a 4T wash-bay lift
For a 4T in-ground single-post car wash lift enquiry, describe the vehicles to be serviced, including wheelbase, track and the lowest underbody point, together with the washing or inspection tasks. Compare the vehicle requirements with the listed 4,000 kg rated capacity and 1,800 mm maximum lifting height, and have the vehicle support arrangement confirmed for the intended work.
Confirming the installation arrangement
Send the proposed bay layout and any available pit or foundation drawing. Ask the quotation to confirm the selected air-hydraulic or hydraulic arrangement, whether a compressed-air connection is required, and the installation, drainage and water-management provisions for the wash bay. The current product information does not state pit dimensions or foundation requirements, so these should be confirmed for the selected configuration before construction.
TECHNICAL DATA
Specifications
Values below follow the supplied product listing. Confirm the final selected configuration before ordering.
Product specifications
| Lift type | In-ground single-post, one cylinder |
|---|---|
| Lifting capacity | 4,000 kg |
| Drive | Air-hydraulic / hydraulic |
| Minimum height | 110 mm |
| Maximum lifting height | 1,800 mm |
| Post material | Steel |
Installation requirements
Confirm the civil pit, drainage, waterproofing, compressed-air supply, working area, and hydraulic-oil requirements before ordering.
PRODUCT DETAILS
Features, construction, and applications
Review the available product detail images for the selected equipment.
View 6 more detail images
PRODUCT VIDEO
See the equipment in detail
Play the product video directly on this page.
BUYER SEARCH GUIDE
Single-post car wash lift sourcing guide
This equipment is intended for vehicle washing, underbody cleaning, detailing, inspection, and related service-bay access.
Common sourcing language
Importers, distributors, and workshop buyers may describe BAOHUA 4T In-Ground Single-Post Car Wash Lift using these related terms:
- single-post car wash lift
- in-ground car washing lift
- hydraulic wash lift
- vehicle underbody wash lift
What to compare before ordering
Car-wash lift selection should account for platform size, rated capacity, minimum height, lifting travel, hydraulic-station location, control method, corrosion protection, drainage, foundation conditions, and available car lift size in mm. Confirm the vehicle range and wash-bay civil works before installation.
View CAR WASH AND DETAILING
Compare related models and choose the configuration that matches your vehicles, process, utilities, and workshop layout.
View categoryBUYER FAQ
4T single-post car wash lift FAQ
Review the confirmed product data and the project information needed before requesting a final configuration.
What is the rated lifting capacity?
The supplied specification states a 4,000 kg rated lifting capacity.
What lifting-height range is stated?
The product data states a 110 mm minimum height and a 1,800 mm maximum lifting height.
What operating system is listed?
The supplied specification describes an air-hydraulic or hydraulic operating arrangement.
Which applications are listed?
The page lists car wash bays, detailing centers, underbody cleaning, and maintenance workshops.
What site information is required?
Provide vehicle weights, bay dimensions, floor and pit drawings, drainage, air supply, utility positions, installation location, and destination.
Why is drainage planning important?
The lift is installed in a wash environment, so pit water management, drainage access, and maintenance access need to be coordinated with the site design.
